The use of UV Intensity (mW) Meters and  UV Power (mJ) Meters for precise and regular monitoring of exposure parameters during photolithographic-related processing can significantly improve both the quality and the yield of products.

The UV measurement systems offered by Bachur & Associates have the capability to function over a wide range of selected spectrums, intensities and/or energy levels.  Sensors probes are pre-calibrated and interchangeable on both Models 200, 202 and 220.

Bachur and Associates offers several hand-held, portable UV Power Meters designed to measure UV Intensity (mW/cm²) and/or Energy (mJ/cm²). These systems provide the capability to make accurate (NIST Traceable) and repeatable measurements in selected spectrums within the 220nm - 450nm spectral range.

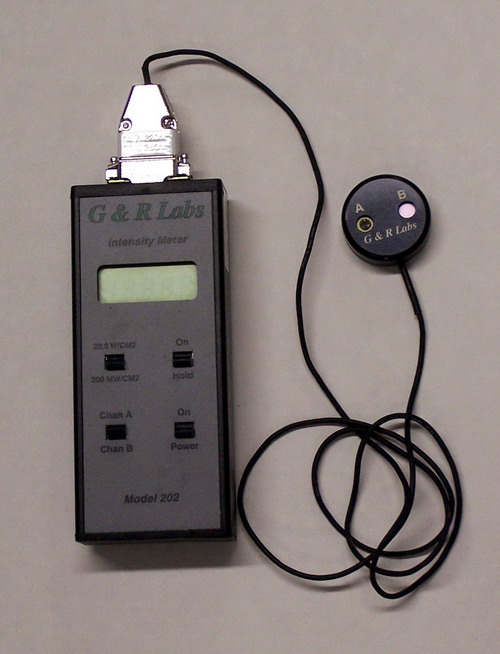

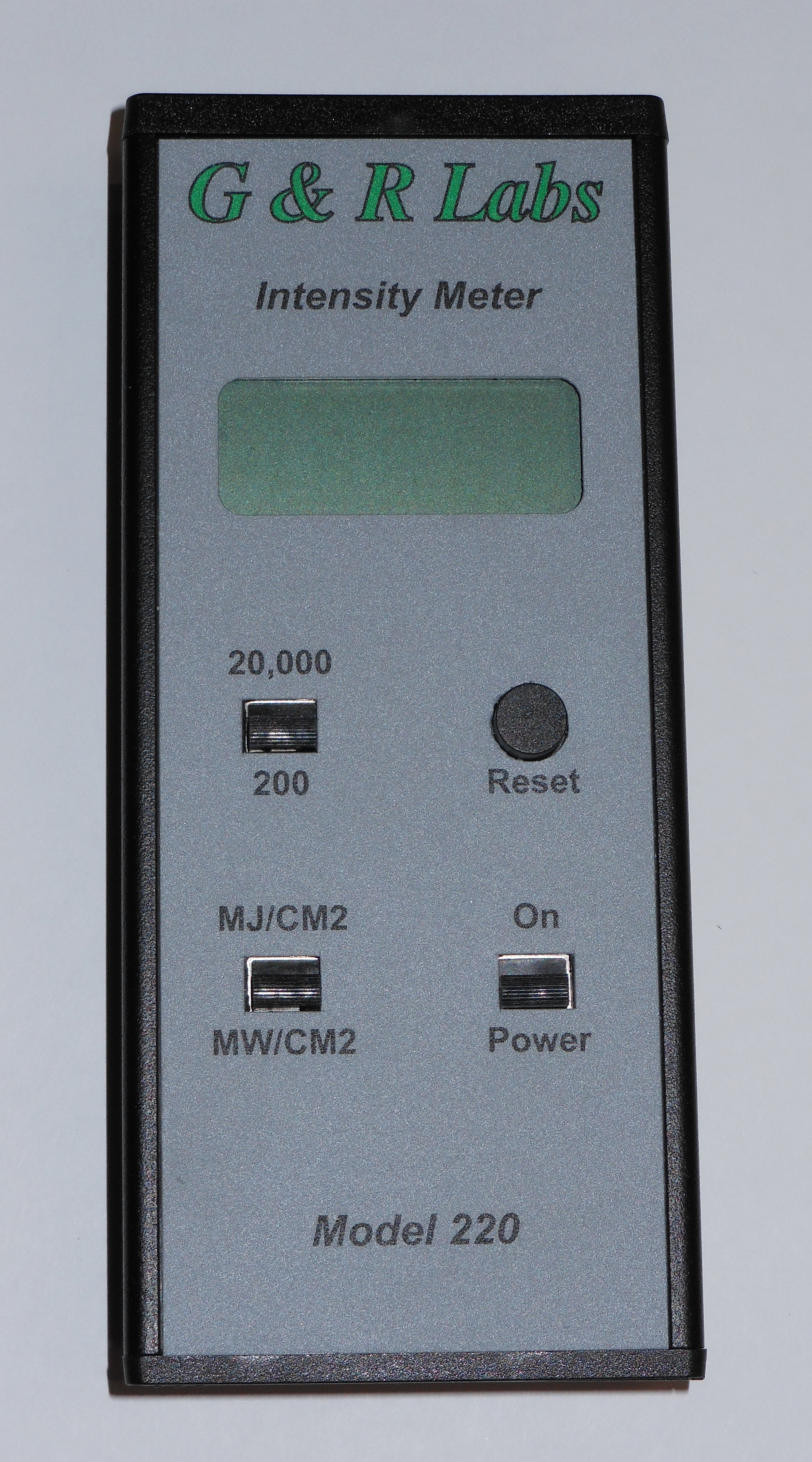

                                                     MODEL 202 (mW/cm²)       MODEL 220 (mW/cm² and mJ/cm²)

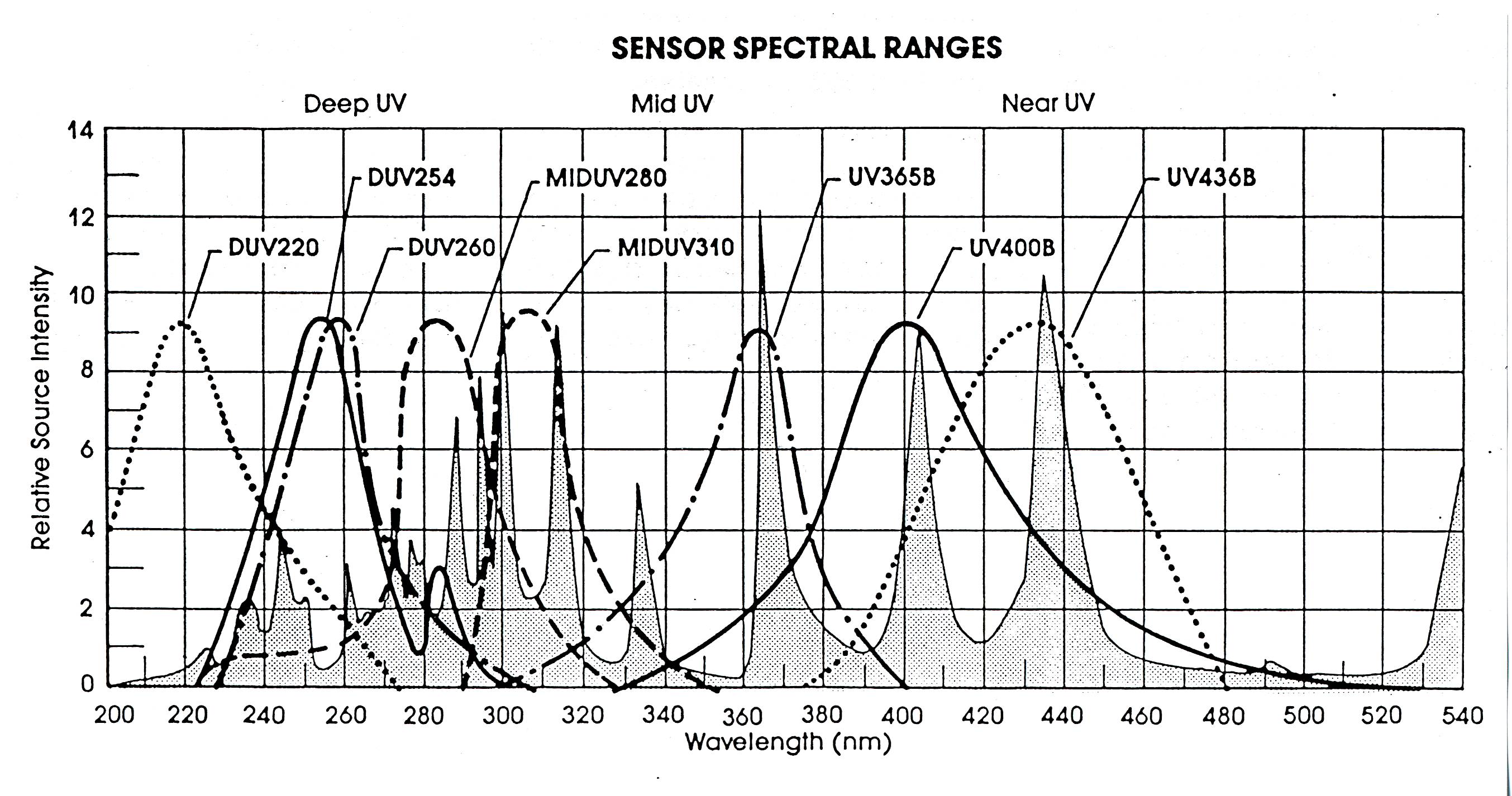

	SENSORS / SPECTRUMS
Deep UV	DUV220 (220nm-260nm)  DUV254NB (254nm)  DUV260 (240nm-275nm)
Mid UV	MUV-280 (270nm-295nm)  MUV-310NB (310nm)
Near UV	NUV365B (350nm-375nm)  NUV400B (380nm- 425nm)  NUV436B (405nm-460nm)  NUV436NB (436nm)

---

For additional technical information and pricing contact us at...
